GPS Units

$259 + $17/month

CalAmp LMU-3000

Location and engine hour tracking for light trucks and cars.

The LMU-3000 is an economical, full-featured vehicle tracking unit designed for easy and reliable installation in cars and light trucks. The unit features a small size, superior GPS performance and OBDII interface.

TCU plugs into light vehicle's OBD port for power
Internal GPS and cellular antenna
Location tracking
Odometer is calculated using GPS
Monitors driver behavior (fast braking, fast acceleration)
Monitors the "Check Engine" light status

$455 + $19/month

CalAmp LMU-4520

Heavy-duty weatherproof enterprise location messaging unit.

CalAmp’s LMU-4520 is a fully weatherproof, dual-mode, location-and-messaging device for mining and construction markets that features both satellite and cellular communications as well as connection to the vehicles ECU. It offers a full set of fleet management features, along with an IP67 environmental rating. The LMU-4520 expandability and flexibility lowers the cost of delivering, supporting, and growing fleet management solutions.

Heavy-duty weatherproof IP67 rated enclosure
Built-in 3-axis accelerometer for driver behavior, motion sensing hard braking, impact detection
Dual reporting 20,000 event buffered message logs to manage cellular, satellite and WiFi communications channels
Low power sleep modes
Backup battery
Comprehensive I/O system

$319 + $15/month

CalAmp TTU-720

Location tracking for non-powered equipment.

The TTU-720 is a battery-operated, non-rechargeable trailer tracking unit designed for multi-year deployments. It is a high-value tracking unit featuring a small size, superior GPS performance, and a 7-year internal 57 Ah battery. The unit incorporates next-generation, super-sensitive GPS technology on GPRS and HSPA cellular networks for installation in any mobile asset. Messages are transmitted across the GSM/GPRS cellular network.

IP 67 TCU with internal battery
Internal GPS and cellular antenna
Perfect for simple track-and-trace applications

$269 + $17/month

CalAmp TTU-1220

Location and engine hour tracking for heavy equipment.

The TTU-1220 has an internal rechargeable battery pack for heavy equipment and trailer tracking designed for multi-year deployments. The unit features a small size, superior GPS performance, an internal 3.8 Ah battery, and three I/O. It incorporates next-generation, super-sensitive GPS technology on GPRS and HSPA cellular networks for installation in any 12 or 24-volt mobile vehicle.

IP 66 TCU with internal backup battery
Integrated antenna
Location tracking
Odometer is calculated using GPS
Tracks engine hours (based on ignition-on timing)
Tracks movement start and stop

$309 + $17/month

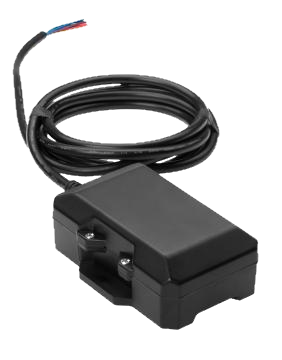

CalAmp TTU-2830

6-month rechargeable tracking unit for heavy equipment.

The TTU-2830 weatherproof tracking product is designed for reliable, long-term deployments. The TTU-2830's rechargeable battery pack makes it an ideal solution for managing assets that are normally tethered to 12 or 24 volt systems but may sit disconnected for periods of time.

6 months with single message cycle per day on fully charged batteries
5.2 Ah lithium ion rechargeable battery pack
Internal GSM and GPS antennas
Tracks location and engine hours (based on ignition-on timing)
3-axis accelerometer for motion, hard braking/acceleration, and impact detection
20,000 buffered messages for data logging during coverage loss
Can be connected to a crane with 2 engines and report hours for each
Can be attached to a PTO sensor to report hours when the PTO is engaged

$399 + $19/month

Morey MC-3

Location and CAN bus data tracking for heavy equipment.

The Morey MC-3 is a rugged IP67 telematics control unit designed for telematics applications in vehicles and powered assets with 12V – 24V systems. It features an internal GPS and cellular antenna, 3 status LEDs, motion and ignition detection. The MC3 also reports standard CAN/J1939/J1708 data.

IP 67 TCU
Integrated GPS and cellular antenna
Location tracking
Odometer is calculated using GPS
Tracks engine and idle hours (based on ignition-on timing)
Tracks movement start and stop
Tracks engine fuel used
Tracks engine idle fuel used

$1000 + $18/month

Phoenix MTG

Location and CAN bus data tracking for heavy equipment.

Phoenix International, A John Deere Company, makes reliable and rugged electronics that meet intense quality requirements. The Phoenix Modular Gateway product is a WinCE-based box that lives up to the company's reputation. After working with this product, LHP Telematics engineers have found it to be a reliable workhorse that can handle the most demanding CAN based telematics applications.

IP 67 TCU
External GPS and cellular antenna
Location tracking
Tracks engine and idle hours (CAN)
Reports standard CAN/1939 data
Reports DM1 error codes (CAN)
Reports the current, minimum, maximum, and average of 15 engine data points
